YLB2000 Mobile Asphalt Plant

*Capacity: 160t/h   *Total Power≤413kw

Select Capacity:



E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

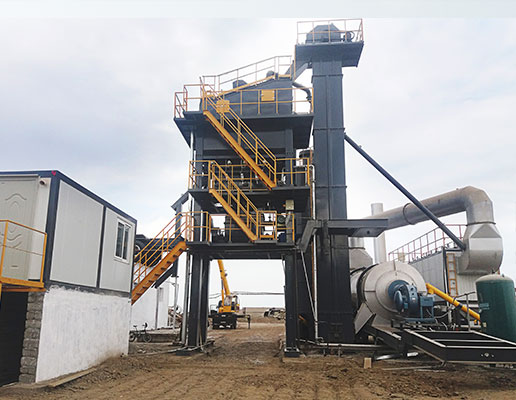

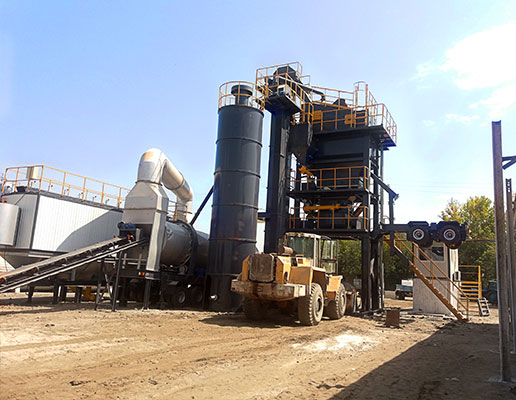

YLB2000 mobile asphalt plant is a portable, moveble batch type asphalt mixing plant.It is designed on the basis of LB series asphalt mixing plant,so this plant has not only the charactristics of LB series plant but also some new itself features.
Features:
1. Adopt trailer,easy to move.
2. Modular design, fast to install.
3. Screening, hot storage, weighing and mixing are in one folding frame, so these components can be moved together with the main tower.
4. Accurate screening, weighing, and batch mixing, to ensure mixing quality.

Model

YLB2000

Main Parameters

Capacity(t/h)

160

Total Power(kw)

413

Noise(dB)

≤70

Voltage

220V/380V-50HZ(Adjustable)

Cold Feeder

(Mobile Type)

Cold Bin(m³)

5*8

Belt Feeding Capacity(t/h)

175

Belt Width(mm)

650

Feeding Belt Adjustment Mode

Frequency Invertor

Drying System

(Mobile Type)

Drying Capacity(t/h)

175

Dryer Drum Size(mm)

Φ1800*8000

Drive Motor Power(kw)

4*15

Fuel

Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas

Coal Burner

Max Burning Amount(kg/h)

2500

Oil Burner

Max Burning Amount(kg/h)

200-1000

Dust Collecting System(Mobile Type)

Primary Gravity Dust Collector

Cyclone Dust Collector, Volute Casing Collector

Baghouse Dust Collector

Filter Area(m²)

550

Filter Bag

NOMEX (USA. DuPont)

Air Emissions

≤20mg/Nm³

Air Black

RingelmannⅠ

Blower(m³/min)

1130

Mixing Tower

(Mobile Type)

Hot Aggregate Elevator

Type

Chain Elevating

Capacity(t/h)

175

Vibrating Screen

Screening Decks

4

Screening Area(m²)

24.2

Hot Storage Bin

Quantity

4+1

Capacity(m³)

32.5

Mixer

Mixer Capacity(kg)

2000

Type

Double Axis Forcing Stirring Batch Mixer

Mixing Period(s)

45

Mixing Power(kw)

2*37

Weighing System

Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2%

Bitumen Supply System(Stationary/ Mobile Type)

Heating Type

Electric Heating/Hot Oil Heating System

Bitumen Pump

Screw Pump Injection Type

Discharge Amount of Bitumen(L/min)

700

Bitumen Tank(m³)

2*40

Filler Supply System

Filler Tank

Optional

Screw conveyor Capacity(t/h)

24

Travel System

Semi-trailer Series Quantity

5/7

Pneumatic System

Air Compressor

Screw Air Compressor

Air Storage Tank

600L---2000L Optional

Control System

Fully Automatic Computer Control(IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER)
