Belt Conveyor Concrete Mixing Plant

Capacity：60m3/h-240m3/h
Discharging Height：4100mm
Mixing system：JS1000-JS3000
Aggregate batching machine： PLD1600-PLD3200
After-sale service：12 months after erection

E-mail:sales@unique-cons.com
  • Overview
  • Parameters
  • Configuration
  • Downloads

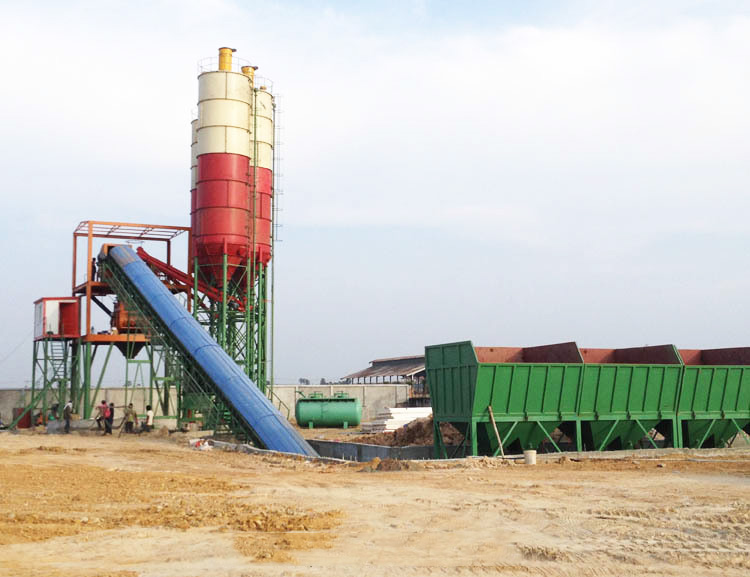

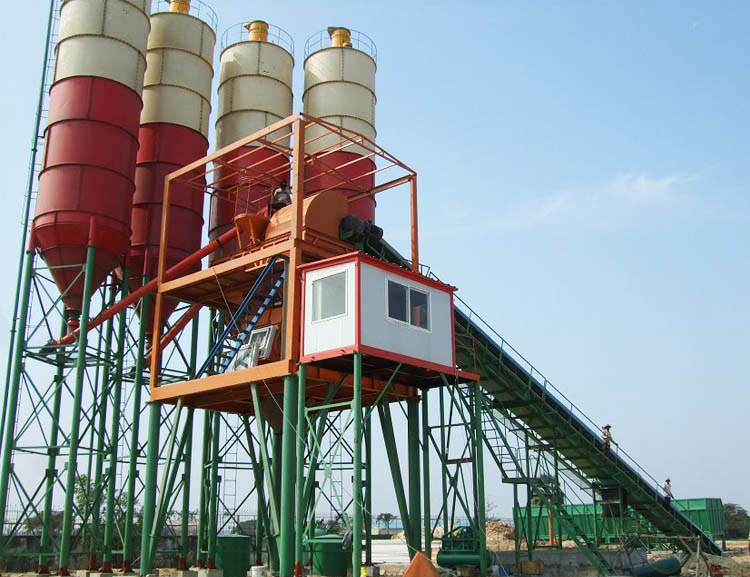

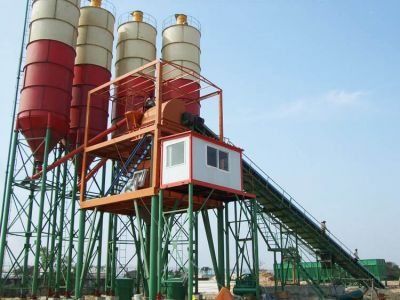

Belt Conveyor Concrete Batching Plant:

HZS series concrete mixing plant designed by Zhengzhou Xinyu Machine Manufacture Co., Ltd has advanced technology in the world.

It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread.

It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.


Concrete Mixing Plant Parameters

Model HZS60 HZS90 HZS120 HZS150
Capacity 60m3/h 90m3/h 120m3/h 180m3/h
Mixing system Twin shaft concrete mixer
Aggregate feeder Belt conveyor
Discharging height 3800mm 3800mm 3900mm 4000mm
After-sale service Erection & commissioning, operator training
Warranty 12 months after erection
Concrete mixer JS1000 JS1500 JS2000 JS3000
Discharging volume 1000L 1500L 2000L 3000L
Charging volume  1500L 2250L 3000L 4500L
Mixing circle 72s
Max. mixing size 80/60mm

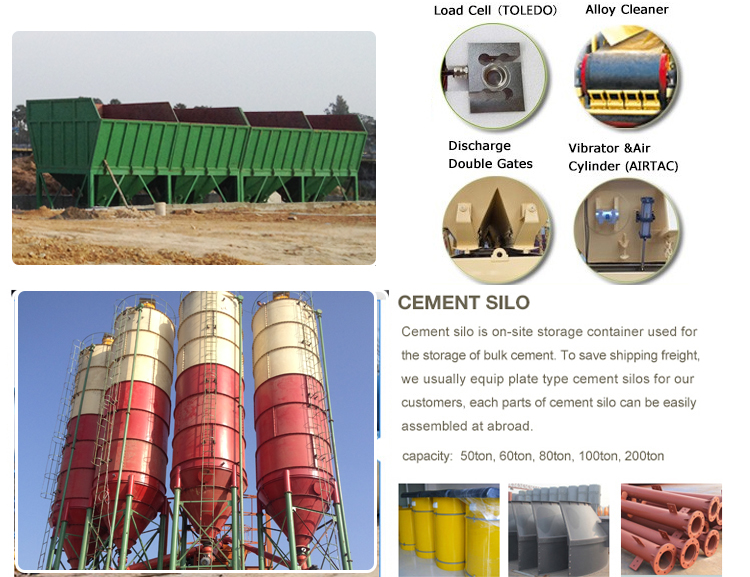

Aggregate batching machine PLD1600 PLD2400 PLD3200 PLD4800
Storage bins quantity 2 or 3 or 4 sorts 3 or 4 sorts 3 or 4 sorts 3 or 4 sorts
Aggregate scale hopper 1600L 2400L 3200L 4800L
Weighing system Water, Cement, Additive
Weighing precision        ±1%
Air system Air compressor, etc

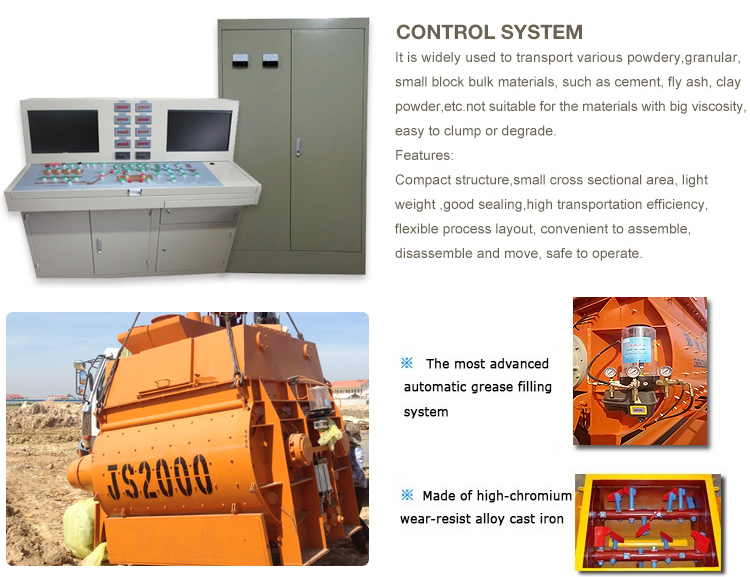

Control system type Computer auto-control module (PLC can be optional item)






Features of Concrete Batching Plant:
1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. With its modularization structure, it is easy to transport, install and debug more quickly.
3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
6. PC+PLC control system ensures the high reliability.
7. With its virtue of precise computation, it can meet the requirement of every high performance concrete.
8. Human-based intelligent control facilitates the operation greatly.
9. Structural members are durable, and most electric elements adopt world famous brands.
