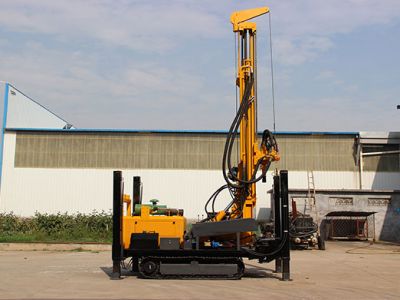

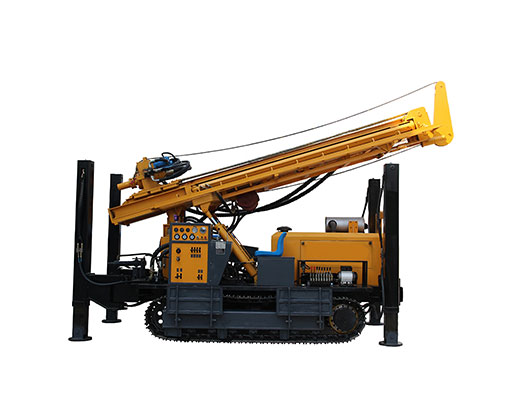

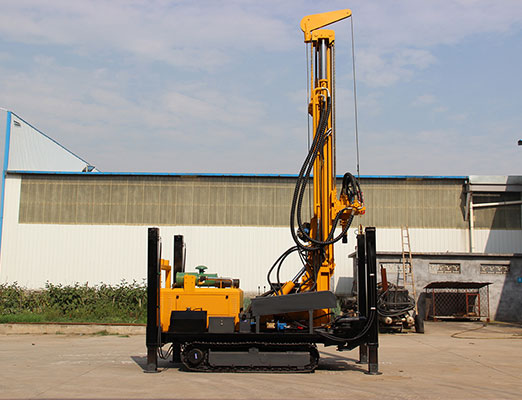

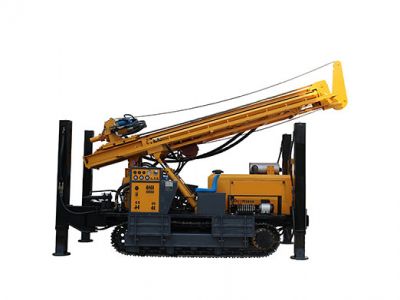

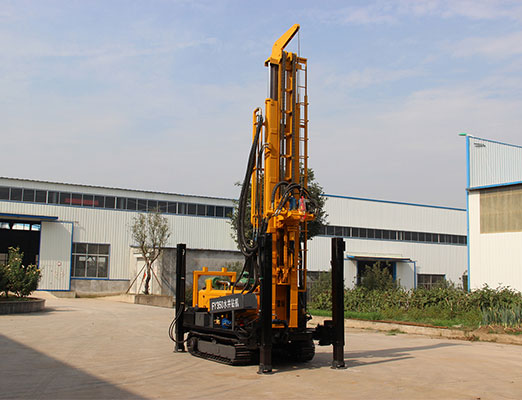

FY500 Water Well Drilling Rig

Deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.

A reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.


TAG:  FY500 Water Well Drilling Rig

E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

Product Description

Deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency. A reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coal bed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.




TAG:  FY500 Water Well Drilling Rig

Technical Parameters

Model

Parameter

FY500
The weight(T) 11.5
The hole diameter (mm) 140-350
Drilling depth (m) 500
One-time advance length (m) 6.6
Walking speed (km/h) 2.5
Climbing angles (Max.) 30
Equipped capacitor (KW) 118
Using air pressure (MPA) 1.7-3.5
Air consumption (m³/min) 17-42
Drill pipe diameter (mm) Φ102  Φ108  Φ114
Drill pipe length (m) 1.5m  2.0m  3.0m  6.0m
Rig lifting force (T) 26
Swing speed (rpm) 40-115
Swing torque (N.m) 7000-10000
Dimension (mm) 6200×2200×2950




TAG:  FY500 Water Well Drilling Rig

Features

  • Keeping bracket is installed on the host to form a double wheel support structure, able to withstand the strong blow
  • Vertical boxes are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.
  • Keeping bracket is installed on the host to form a double wheel support structure, able to withstand the strong blow
  • Vertical boxes are fixed by four groups of bearings to ensure that the rotary machine has sufficient rigidity to overcome gravel layer and other complex geological conditions.

TAG:  FY500 Water Well Drilling Rig
