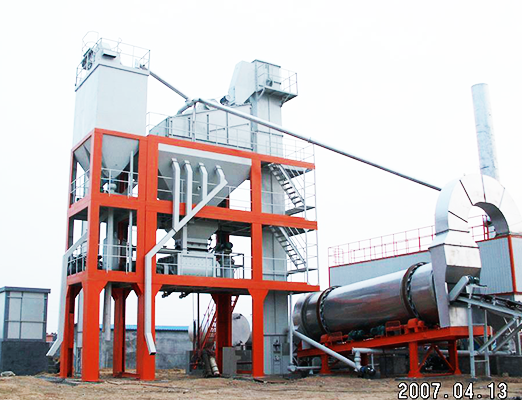

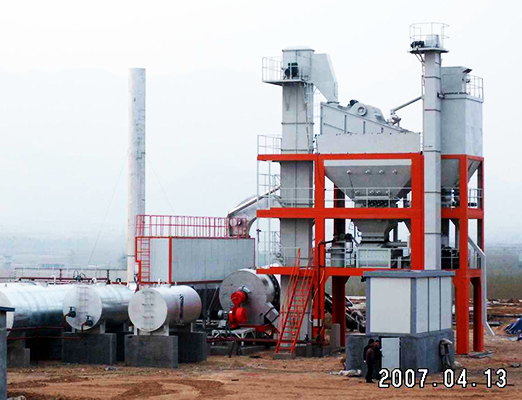

LB1000 Asphalt Mixing Plant

*Capacity: 80t/h   *Total Power≤242kw

Select Capacity:



E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

LB1000 asphalt mixing plant adopts advanced technology and newest degign which we have optimizeed again and again.Finally forms the characteristics: compact structure, stable and reliable performance. This asphalt plant is widely used in all levels of road construction, and can be designed to be loaded into containers to meet the shipping requirements.

Characteristics:
1.Strengthen quality,much safe and convenient.
2.Compact layout,using fewer areas.
3.Modular design,transportation and installation is much easy.
4.Electronic weighing system,to ensure measurement accurate.

Model

LB1000

Main Parameters

Capacity(t/h)

80

Total Power(kw)

≤242

Noise(dB)

≤70

Voltage

220V/380V-50HZ(Adjustable)

Cold Feeder

Cold Bin(m³)

4*7

Belt Feeding Capacity(t/h)

90

Belt Width(mm)

500

Feeding Belt Adjustment Mode

Frequency Invertor

Drying System

Drying Capacity(t/h)

90

Dryer Drum Size(mm)

Φ1600*6800

Drive Motor Power(kw)

4*7.5

Fuel

Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas

Coal Burner

Max Burning Amount(kg/h)

1300

Oil Burner

Max Burning Amount(kg/h)

110-550

Power(kw)

1120-6100

Dust Collecting System

Primary Gravity Dust Collector

Cyclone Dust Collector, Volute Casing Collector

Baghouse Dust Collector

Filter Area(m²)

380

Filter Bag

NOMEX (USA. DuPont)

Air Emissions

≤20mg/Nm³

Air Black

Ringelmannâ…

Blower(m³/min)

570

Mixing Tower

Hot Aggregate Elevator

Type

Chain Elevating

Capacity(t/h)

110

Vibrating Screen

Screening Decks

4

Screening Area( m²)

14.7

Hot Storage Bin

Quantity

4+1

Capacity( m³)

24

Mixer

Mixer Capacity(kg)

1000

Type

Double Axis Forcing Stirring Batch Mixer

Mixing Period(s)

45

Mixing Power(kw)

2*18.5

Weighing System

Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2%

Bitumen Supply System

Heating Type

Electric Heating/Hot Oil Heating System

Bitumen Pump

Screw Pump Injection Type

Discharge Amount of Bitumen(L/min)

300

Bitumen Tank( m³)

40

Fuel Tank

Optional

Filler Supply System

Filler Tank

Optional

Screw conveyor Capacity(t/h)

15

Hot Mix Storage Silo

Bottom Placed/Side Placed

40t/60t/80t, Optional

Pneumatic System

Air Compressor

Screw Air Compressor

Air Storage Tank

600L---2000L Optional

Control System

Fully Automatic Computer Control(IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER)
