*Capacity: 60t/h *Total Power: ≤178kw
Select Capacity:

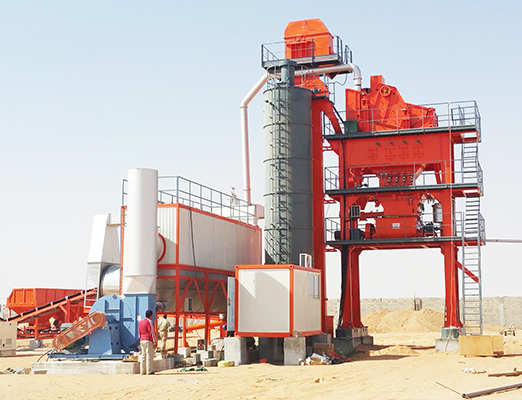

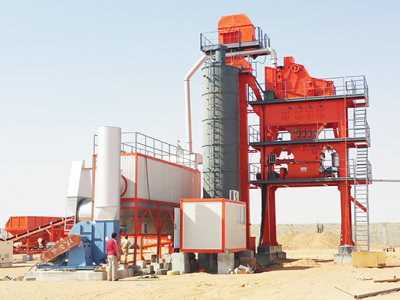

LB700 asphalt mixing plant adopts advanced technology and newest degign which we have optimizeed again and again.Finally forms the characteristics: compact structure, stable and reliable performance. This asphalt plant is widely used in all levels of road construction, and can be designed to be loaded into containers to meet the shipping requirements.
Characteristics:
1.Strengthen quality,much safe and convenient.
2.Compact layout,using fewer areas.
3.Modular design,transportation and installation is much easy.
4.Electronic weighing system,to ensure measurement accurate.
|
Model |
LB700 |
|
|
Capacity |
60t/h (standard working condition) |
|
|
Mixer Capacity |
750kg/batch |
|
|
Drying Drum |
Φ1200*5200mm |
|
|
Fuel Consumption |
Diesel: 5.5-7kg/t; Coal:10kg/t |
|
|
Measurement Accuracy |
Aggregate |
±0.5% |
|
Filler |
±0.5% |
|
|
Bitumen |
±0.25% |
|
|
Finished Asphalt Temperature |
130℃-165℃ |
|
|
Dust Collector |
gravitational dust collector & Second baghouse dust collector |
|
|
Air Emissions |
≤20mg/Nm³ |
|
|
Dark exhaust standard |
Ringelmann I |
|
|
Working room noise |
≤70db(A) |
|
|
Environment noise |
≤80db(A) |
|
|
Operation |
Full Auto/Manual Operation |
|
|
Total Installation Power |
≈178kW |
|
|
Voltage |
220V/380V-50Hz (adjustable) |
|
|
Plant Covering Area |
Length: 35m; width: 30m; max height point: 17m |
|
