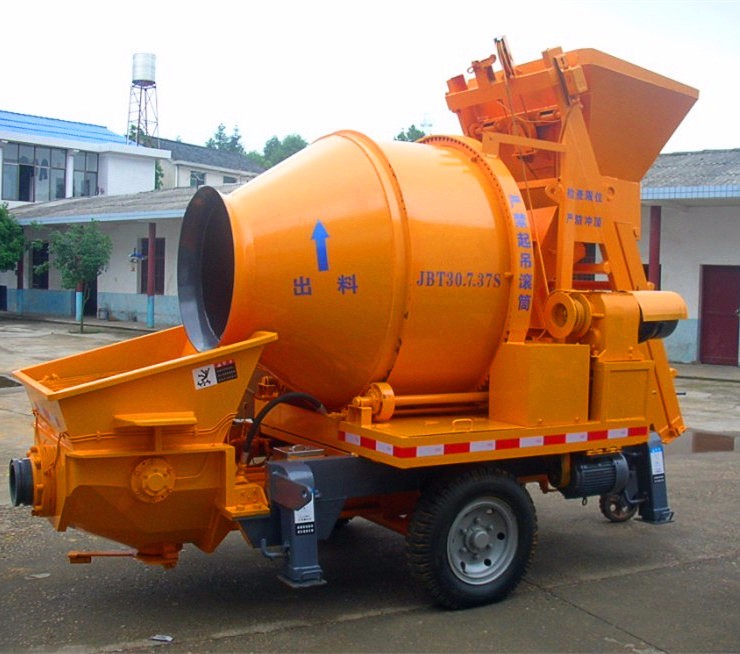

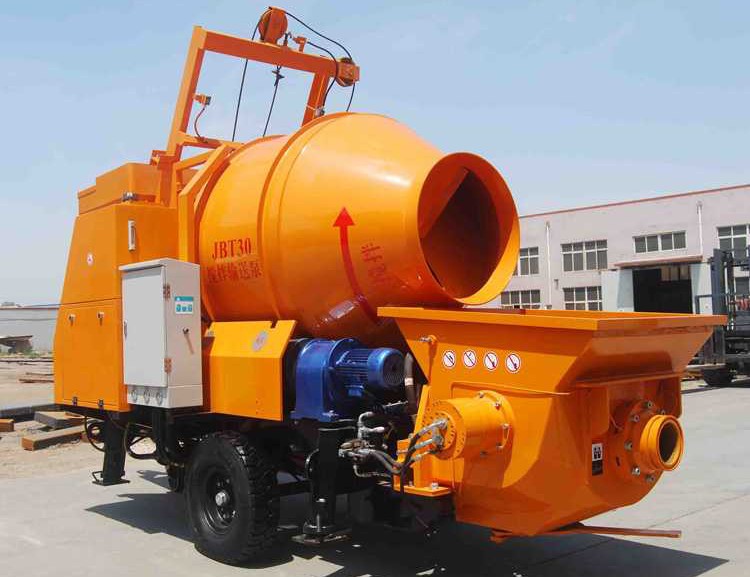

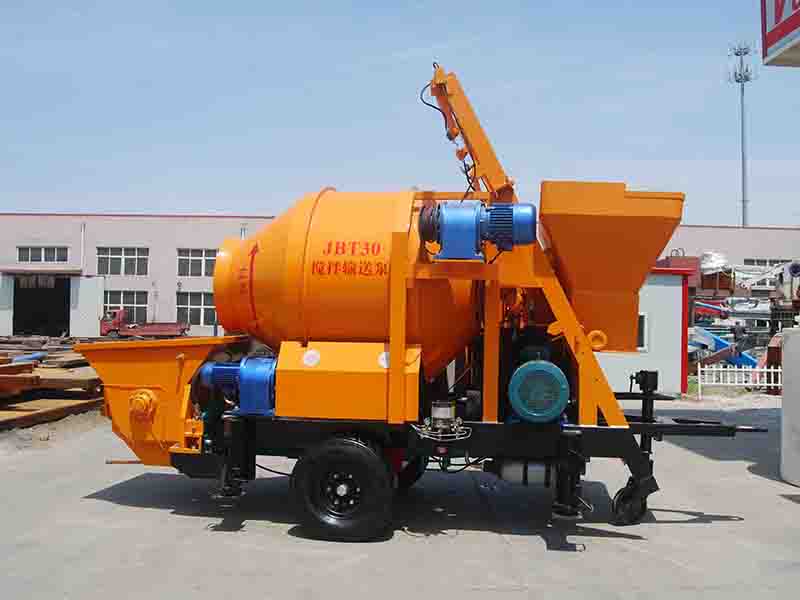

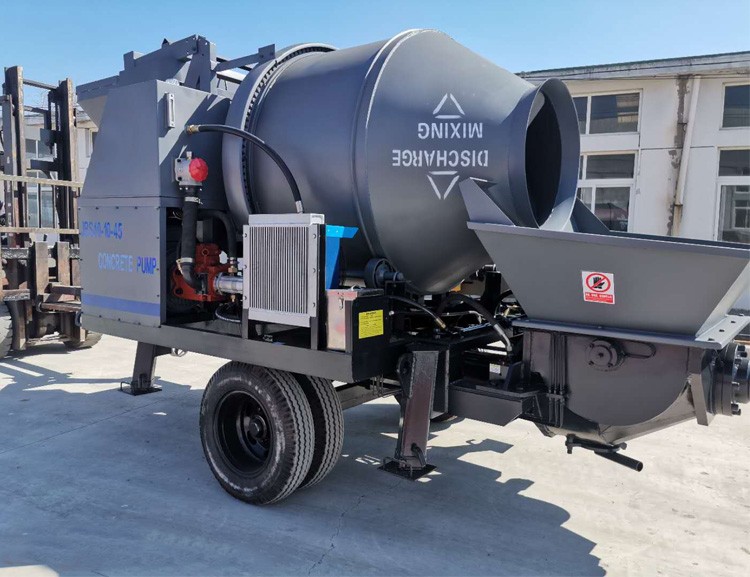

Concrete Mixer Pump

Theoretic output: 30m³/h
Theoretic outlet pressure: 8Mpa
Theoretic delivery height: 130m
Theoretic delivery distance: 320m

E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Item

Unit

JBT30

Pumping system

Theoretic output

m³/h

30

Theoretic outlet pressure

Mpa

8

Theoretic delivery height

m

130

Theoretic delivery distance

m

320

Pumping frequency

times/min

15

Distribution valve type



S pipe valve

Concrete cylinder spec.

(inner dia. x stroke)

mm

Φ180×1000

Oil cylinder spec.

(outer dia. x inner dia. x stroke)

mm

Φ100×Φ70×1000

Outlet diameter

mm

Φ150

Delivery pipe inner diameter

mm

Φ125

Hopper volume

L

450

Rated voltage

V

~380

Main motor power

Kw

30

Vibrating motor power

Kw

0.04

Hydraulic circuit type



open

Main system max. oil pressure

MPa

22

Distributing system oil pressure

MPa

16

Mixing system oil pressure

MPa

9

Max. Mixing speed

r/min

24

Oil tank volume

L

120

Max. aggregate diameter

mm

≤30

Concrete slump scope

mm

80~200

Outer dimension (L*W*H)

mm

4370×2100×2580

Weight

Kg

3300

Mixing system

Mixing volume per time

m³/time

0.4

Mixing volume per hour

m³/h

16

Mixing motor power

Kw

3×2=6

Lifting motor power

Kw

4.5

Water pump power

Kw

0.55

Vibrating motor power

Kw

0.55



Customer Visit:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Installation site:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Company overview:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Mixing system:

Double motors for mixer mixing with features of quick and homogeneous mixing.

Grinding wheels for mixing drum rotation, stable and reliable.

Vibrating device for aggregate complete discharging.

Pumping system:

Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.

Hydraulic parts are famous brands from home and aboard with high and reliable quality.

Power system: Hongqi motor or Yantai Motor

Main oil pump: Japanese Kawasaki

Lubricating system: Five points and one-to-one lubricating system protects key components from wearing.
