Capacity:15-1000 TPH pandurog ng bato
Input Size:36mm--300mm kono pandurog
Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway
Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

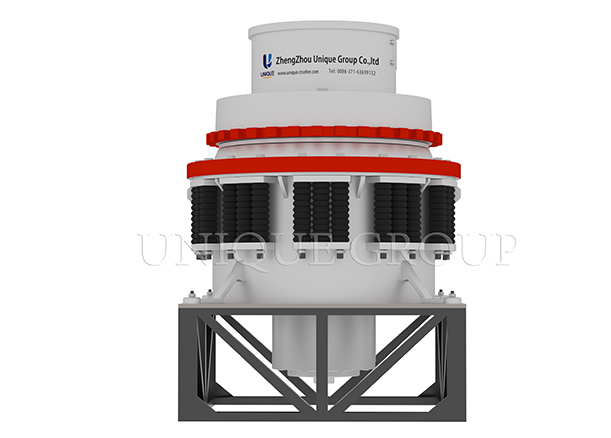

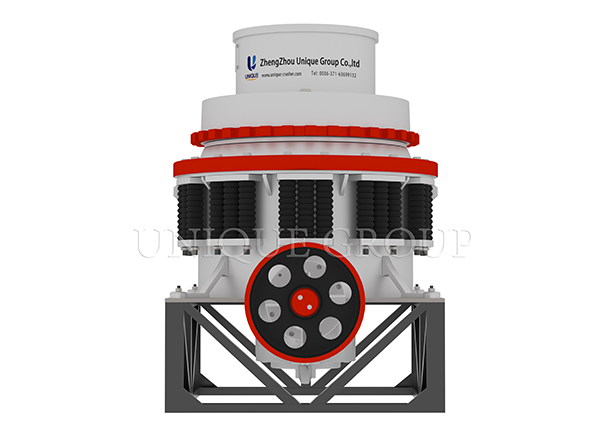

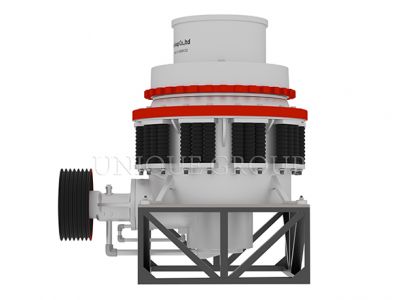

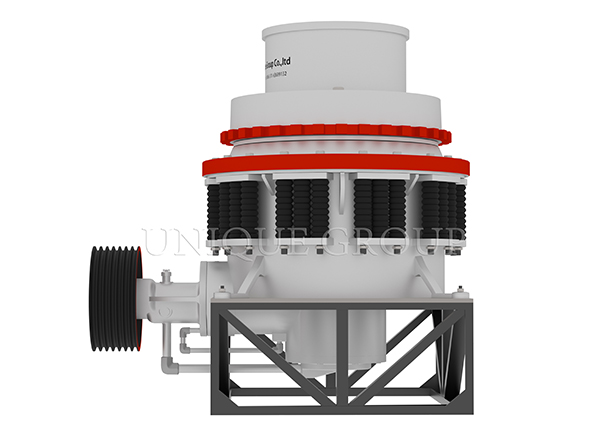

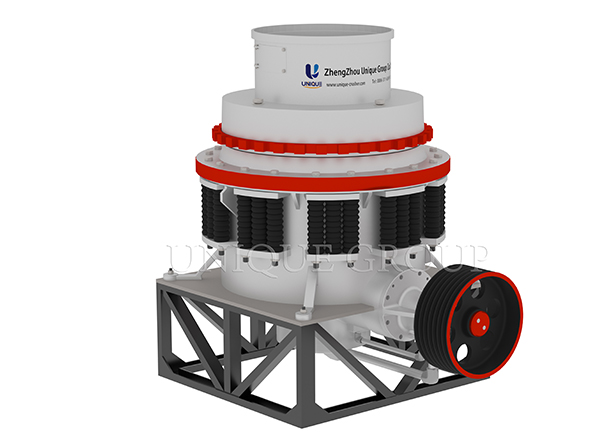

Spring Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgies and so on. The Cone Crusher can crush materials with Moh’s scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing. cone crusher also called kono pandurog sa pilipinas, bato pandurog para ibenta.
Features of cone crusher also called kono pandurog sa pilipinas, bato pandurog para ibenta.
1.High capacity and superior quality;
2.Long working life of quick-wear parts, and low investment;
3.Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time.
Working Principle of cone crusher also called kono pandurog sa pilipinas, bato pandurog para ibenta.
When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber. cone crusher also called kono pandurog sa pilipinas, bato pandurog para ibenta.
