*Capacity: 120t/h *Total Power: ≤326kw
Select Capacity:

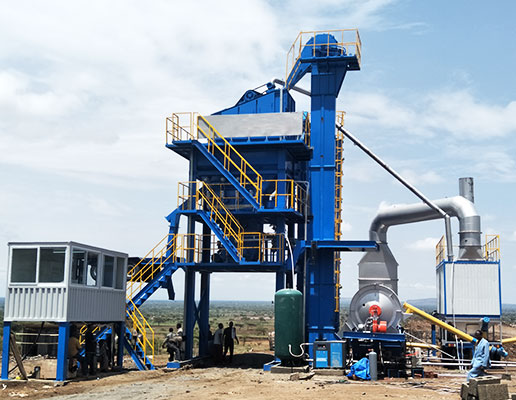

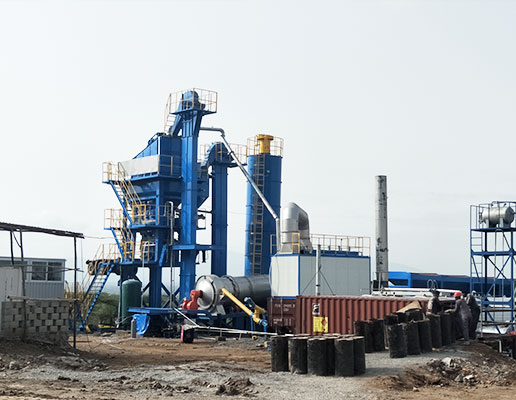

YLB1500 mobile asphalt plant is a portable, moveble batch type asphalt mixing plant.It is designed on the basis of LB series asphalt mixing plant,so this plant has not only the charactristics of LB series plant but also some new itself features.
Features:
1. Adopt trailer，easy to move.
2. Modular design, fast to install.
3. Screening, hot storage, weighing and mixing are in one folding frame, so these components can be moved together with the main tower.
4. Accurate screening, weighing, and batch mixing, to ensure mixing quality.
|
Model |
YLB1500 |
||
|
Main Parameters |
Capacity(t/h) |
120 |
|
|
Total Power(kw) |
326 |
||
|
Noise(dB) |
≤70 |
||
|
Voltage |
220V/380V-50HZ(Adjustable) |
||
|

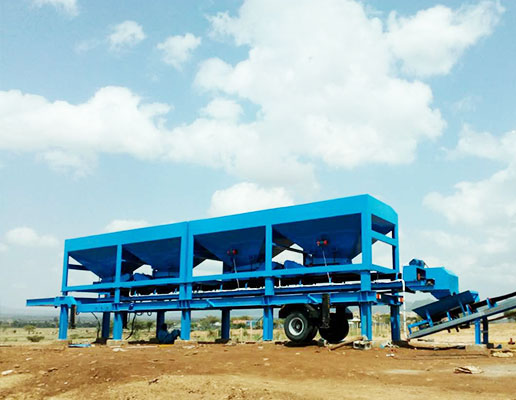

Cold Feeder
(Mobile Type) |
Cold Bin(m³) |
4*8 |
|
|
Belt Feeding Capacity(t/h) |
130 |
||
|
Belt Width(mm) |
600 |
||
|
Feeding Belt Adjustment Mode |
Frequency Invertor |
||
|
Drying System
(Mobile Type) |
Drying Capacity(t/h) |
130 |
|
|
Dryer Drum Size(mm) |
Φ1800*8000 |
||
|
Drive Motor Power(kw) |
4*11 |
||
|
Fuel |
Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas |
||
|
Coal Burner |
Max Burning Amount(kg/h) |
1700 |
|
|
Oil Burner |
Max Burning Amount(kg/h) |
170-850 |
|
|
Dust Collecting System(Mobile Type) |
Primary Gravity Dust Collector |
Cyclone Dust Collector, Volute Casing Collector |
|
|
Baghouse Dust Collector |
Filter Area(m²) |
450 |
|
|
Filter Bag |
NOMEX (USA. DuPont) |
||
|
Air Emissions |
≤20mg/Nm³ |
||
|
Air Black |
RingelmannⅠ |
||
|
Blower(m³/min) |
740 |
||
|
Mixing Tower
(Mobile Type) |
Hot Aggregate Elevator |
Type |
Chain Elevating |
|
Capacity(t/h) |
130 |
||
|
Vibrating Screen |
Screening Decks |
4 |
|
|
Screening Area(m²) |
24.2 |
||
|
Hot Storage Bin |
Quantity |
4+1 |
|
|
Capacity(m³) |
28.5 |
||
|
Mixer |
Mixer Capacity(kg) |
1500 |
|
|
Type |
Double Axis Forcing Stirring Batch Mixer |
||
|
Mixing Period(s) |
45 |
||
|
Mixing Power(kw) |
2*22 |
||
|
Weighing System |
Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2% |
||
|
Bitumen Supply System(Stationary/ Mobile Type) |
Heating Type |
Electric Heating/Hot Oil Heating System |
|
|
Bitumen Pump |
Screw Pump Injection Type |
||
|
Discharge Amount of Bitumen(L/min) |
500 |
||
|
Bitumen Tank(m³) |
2*40 |
||
|
Filler Supply System |
Filler Tank |
Optional |
|
|
Screw conveyor Capacity(t/h) |
20 |
||
|
Travel System |
Semi-trailer Series Quantity |
4/7 |
|
|
Pneumatic System |
Air Compressor |
Screw Air Compressor |
|
|
Air Storage Tank |
600L---2000L Optional |
||
|
Control System |
Fully Automatic Computer Control(IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER) |
||
