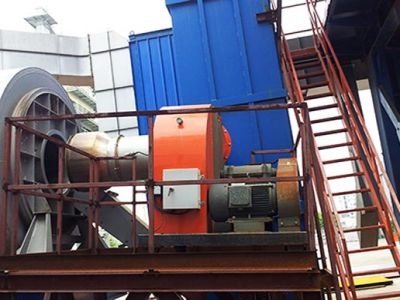

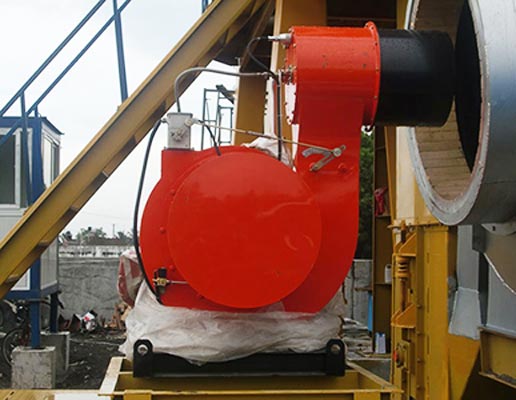

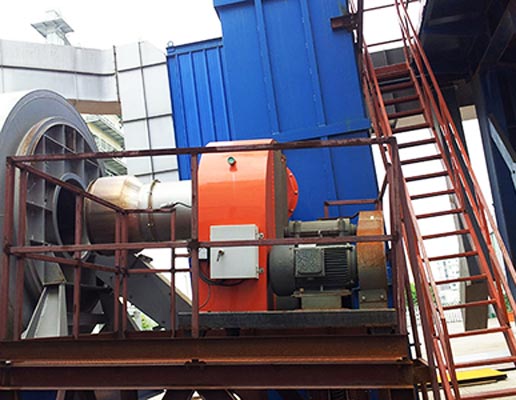

RY series of mechanical pressure heavy oil burner can use the two kinds of oil, widely used in asphalt mixing plant.
Features:
1.Oil route system separate from burner body, so it is safe, convenient and flexible.
2. Oil pump working pressure is 12bar, with long life and wide range of oil options.
3. Gas secondary ignition, high reliability.
4. Special purge line, effectively prevent oil clogging.
5. combustion tube with double structure, with long life and cannot change shape.
6. simple structure, excellent performance, safe and reliable.
7. easy operation and easy to grasp.
8. environmentally friendly.
|
Model |
RY-300CH |
RY-450CH |
RY-550CH |
RY-750CH |
RY-1000CH |
RY-1250CH |
|
Output power |
3540kW |
5310kW |
6490kW |
8850kW |
11800kW |
14750kW |
|
Oil consumption |
300kg/h |
450kg/h |
550kg/h |
750kg/h |
1000kg/h |
1250kg/h |
|
Blower power |
15 kW |
18.5 kW |
22 kW |
30 kW |
45 kW |
55 kW |
|
Pump power |
2.2 kW |
3 kW |
4 kW |
4 kW |
5.5 kW |
7.5 kW |
|
Turndown ratio |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
Note: oil pressure ≤0.3bar; oil viscosity ≤8°E ( 80°C); air pressure 4 ～ 6 bar; users need to place special order if elevation above 1000 meters; according to different pressure of the combustor, choose different air blower power.
Dimension
|
Model |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
H(mm) |
|
RY-300CH |
360 |
1060 |
750 |
750 |
290 |
1100 |
1140 |
610 |
|
RY-450CH |
400 |
1208 |
750 |
800 |
290 |
1100 |
1140 |
660 |
|
RY-550CH |
440 |
1330 |
900 |
900 |
400 |
1160 |
1350 |
710 |
|
RY-750CH |
480 |
1370 |
900 |
900 |
460 |
1190 |
1400 |
740 |
|
RY-1000CH |
540 |
1580 |
1000 |
1000 |
560 |
1350 |
1650 |
800 |
|
RY-1250CH |
580 |
1600 |
1000 |
1100 |
570 |
1450 |
1650 |
900 |
