*Capacity: 240t/h *Total Power: ≤590kw
Select Capacity:

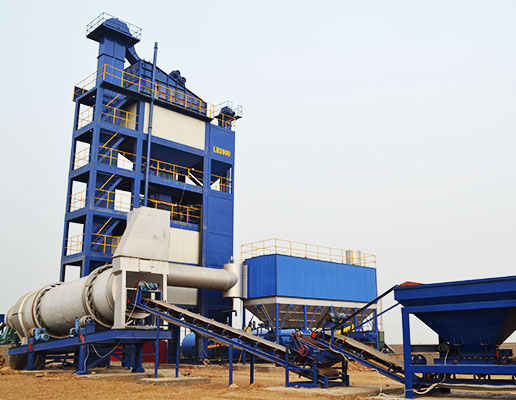

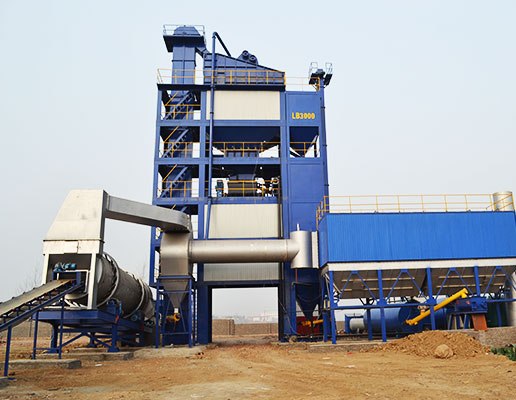

LB3000 asphalt mixing plant adopts advanced technology and newest degign which we have optimizeed again and again.Finally forms the characteristics: compact structure, stable and reliable performance. This asphalt plant is widely used in all levels of road construction, and can be designed to be loaded into containers to meet the shipping requirements.
Characteristics:
1.Strengthen quality,much safe and convenient.
2.Compact layout,using fewer areas.
3.Modular design,transportation and installation is much easy.
4.Electronic weighing system,to ensure measurement accurate.
|
Model |
LB3000 |
||
|
Main Parameters |
Capacity(t/h) |
240 |
|
|
Total Power(kw) |
≤590 |
||
|
Noise(dB) |
≤70 |
||
|
Voltage |
220V/380V-50HZ(Adjustable) |
||
|
Cold Feeder |
Cold Bin(m³) |
5*10 |
|
|
Belt Feeding Capacity(t/h) |
260 |
||
|
Belt Width(mm) |
800 |
||
|
Feeding Belt Adjustment Mode |
Frequency Invertor |
||
|
Drying System |
Drying Capacity(t/h) |
260 |
|
|
Dryer Drum Size(mm) |
Φ2750*9000 |
||
|
Drive Motor Power(kw) |
4*22 |
||
|
Fuel |
Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas |
||
|
Coal Burner |
Max Burning Amount(kg/h) |
3600 |
|
|
Oil Burner |
Max Burning Amount(kg/h) |
300-1400 |
|
|
Power(kw) |
3150-15630 |
||
|
Dust Collecting System |
Primary Gravity Dust Collector |
Cyclone Dust Collector, Volute Casing Collector |
|
|
Baghouse Dust Collector |
Filter Area(m²) |
896 |
|
|
Filter Bag |
NOMEX (USA. DuPont) |
||
|
Air Emissions |
≤20mg/Nm³ |
||
|
Air Black |
Ringelmannâ… |
||
|
Blower(m³/min) |
1600 |
||
|
Mixing Tower |
Hot Aggregate Elevator |
Type |
Chain Elevating |
|
Capacity(t/h) |
260 |
||
|
Vibrating Screen |
Screening Decks |
5 |
|
|
Screening Area( m²) |
24.2 |
||
|
Hot Storage Bin |
Quantity |
5+1 |
|
|
Capacity( m³) |
40 |
||
|
Mixer |
Mixer Capacity(kg) |
3000 |
|
|
Type |
Double Axis Forcing Stirring Batch Mixer |
||
|
Mixing Period(s) |
45 |
||
|
Mixing Power(kw) |
2*45 |
||
|
Weighing System |
Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2% |
||
|
Bitumen Supply System |
Heating Type |
Electric Heating/Hot Oil Heating System |
|
|
Bitumen Pump |
Screw Pump Injection Type |
||
|
Discharge Amount of Bitumen(L/min) |
900 |
||
|
Bitumen Tank( m³) |
3*40 |
||
|
Fuel Tank |
Optional |
||
|
Filler Supply System |
Filler Tank |
Optional |
|
|
Screw conveyor Capacity(t/h) |
36 |
||
|
Hot Mix Storage Silo |
Bottom Placed/Side Placed |
40t/60t/80t, Optional |
|
|
Pneumatic System |
Air Compressor |
Screw Air Compressor |
|
|
Air Storage Tank |
600L---2000L Optional |
||
|
Control System |
Fully Automatic Computer Control(IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER) |
||
