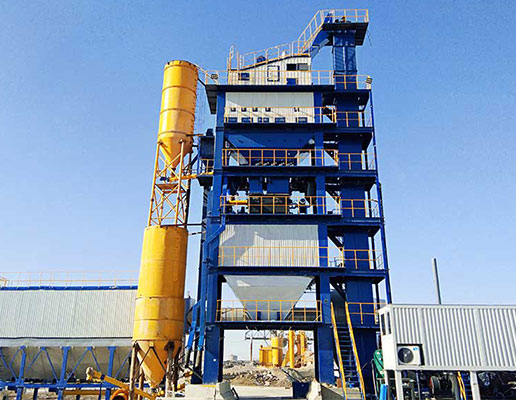

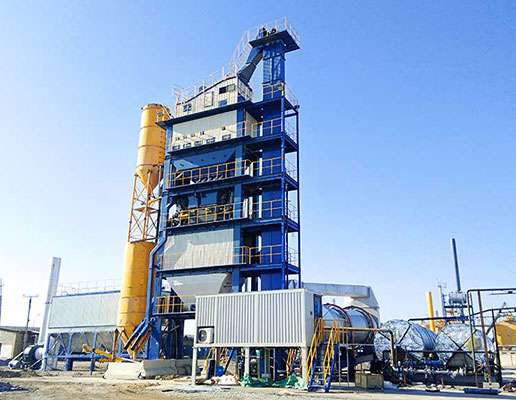

LB2500 Asphalt Mixing Plant

*Capacity: 200t/h   *Total Power: 547kw

Select Capacity:



E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

LB25000 asphalt mixing plant adopts advanced technology and newest degign which we have optimizeed again and again.Finally forms the characteristics: compact structure, stable and reliable performance. This asphalt plant is widely used in all levels of road construction, and can be designed to be loaded into containers to meet the shipping requirements.

Characteristics:
1.Strengthen quality,much safe and convenient.
2.Compact layout,using fewer areas.
3.Modular design,transportation and installation is much easy.
4.Electronic weighing system,to ensure measurement accurate.

Model

LB2500

Capacity

200t/h (standard working condition)

Mixer Capacity

2500kg/batch

Drying Drum

Φ2200*9000mm

Fuel Consumption

Diesel: 5.5-7kg/t; Coal:10kg/t

Measurement Accuracy

Aggregate

±0.5%

Filler

±0.5%

Bitumen

±0.25%

Finished Asphalt Temperature

130℃-165℃

Dust Collector

gravitational dust collector & Second baghouse dust collector

Air Emissions

≤20mg/Nm³

Dark exhaust standard

Ringelmann I

Working room noise

≤70db(A)

Environment noise

≤80db(A)

Operation

Full Auto/Manual Operation

Total Installation Power

≈547kW

Voltage

220V/380V-50Hz (adjustable)

Plant Covering Area

Length: 48m; width: 35m; max height point: 17m
