Skip hopperConcrete Batching Plant:
Concrete Batching Plant also known as concrete mixing plant or concrete plant, the skip hopper Concrete batching Plant is the plant which use bucket transport aggregate from weighting machine into concrete mixer. It is high efficiency, more energy saving and more uniform mixing.

Concrete batching plant consists of material batching, mixing and electric control system, etc, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete.

Xinyu Machinery concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.

Bucket skip batching plant：

Belt conveyor Batcing Plant:

Customer Visit:

Installation site:

Company overview:

 Features of Concrete Plant:

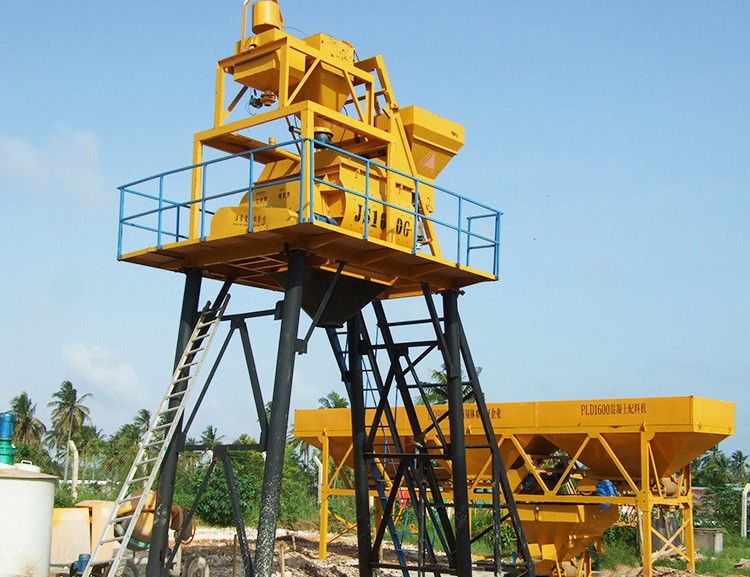

1) This concrete mixing plant adopts JS1000 concrete mixer, it is a double horizontal shaft concrete mixer, so it can mix concrete efficiency and enough in short time.
2) The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.
3) Sand & gravel batching machine use PLD1600, with has highly accuracy measuring.
4) There also has maintenance walkway, so that enginer can examine this plant easily.
5) Cement is stored in cement silo, and feeding by screw conveyor.
6) Water supply system is composed by water tank, water pump and water weigher.
The whole mixing, batching system is operated by electrical control room or control plate, fully automatical.

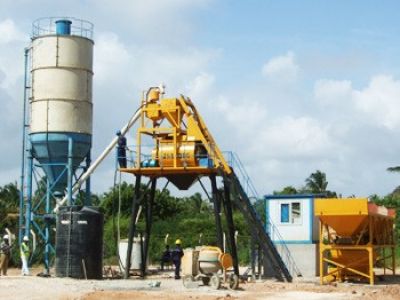

HZS50 Working site in Tanzania:

PLC Control System:

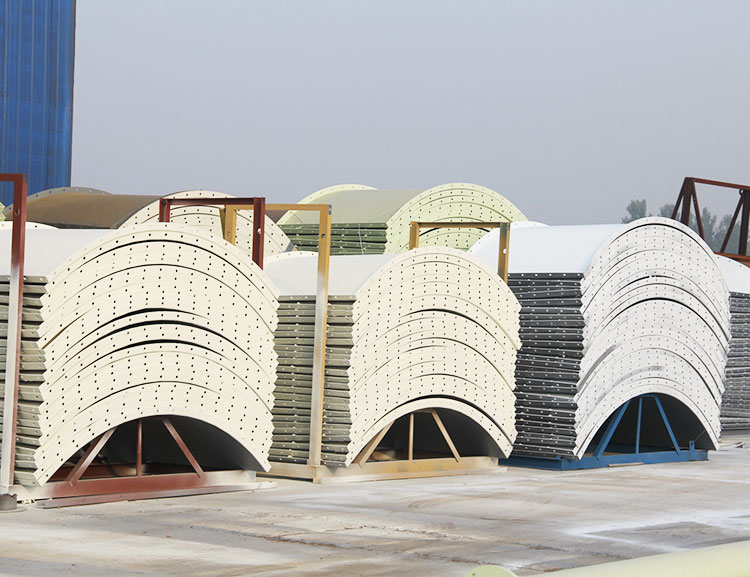

Cement silo:
