HZS25 Concrete Batching Plant

Capacity:25m³/h
Mixing system:JS500
Discharging Height:3800mm
Aggregate batching machine:PLD800
Total Dimensions: 18200×10000×19400mm
After-sale service:12 months after erection

E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

Skip hopper Concrete Batching Plant:
Concrete Batching Plant also known as concrete mixing plant or concrete plant, the skip hopper Concrete batching Plant is the plant which use hopper aggregate from weighting machine into concrete mixer. It is high efficiency, more energy saving and more uniform mixing.

Concrete batching plant consists of material batching, mixing and electric control system, etc, which is professional equipment for ready mix concrete production, such as plasticity/dry concrete.

Xinyu concrete mixing plant is widely used in small and medium construction products, road, bridge project, and concrete prefabrication factory.



UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Bucket skip batching plant:

Model

HZS25

HZS35

HZS50

HZS75

Capacity(m3/h)

25

35

50

75

Mixing system

(twin shaft concrete mixer)

JS500

JS750

JS1000

JS1500

Aggregate Feeder

Bucket (Skip Hopper)

Discharging volume

500L

750L

1000L

1500L

Aggregate scale hopper

800L

1200L

1600L

2400L

Weighing system

Water, Cement, Additive

Air system

Air compressor, etc

Control system

Computer auto-control module (PLC can be optional item)

After-sales service

Erection & commissioning, operator trainining

Belt conveyor Batcing Plant:

Model

HZS60

HZS90

HZS120

HZS150

Capacity(m3/h)

60

90

120

150

Mixing system

(twin shaft concrete mixer)

JS1000

JS1500

JS2000

JS3000

Aggregate Feeder

Belt Conveyor

Discharging volume

1000L

1500L

2000L

3000L

Aggregate scale hopper

1600L

2400L

3200L

4800L

Weighing system

Water, Cement, Additive

Air system

Air compressor, etc

Control system

Computer auto-control module (PLC can be optional item)

After-sales service

Erection & commissioning, operator training



Customer Visit:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

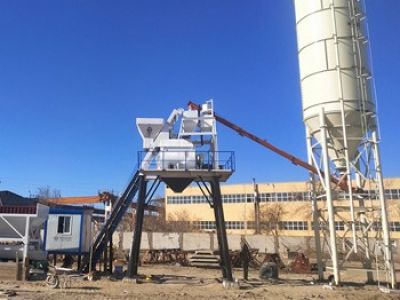

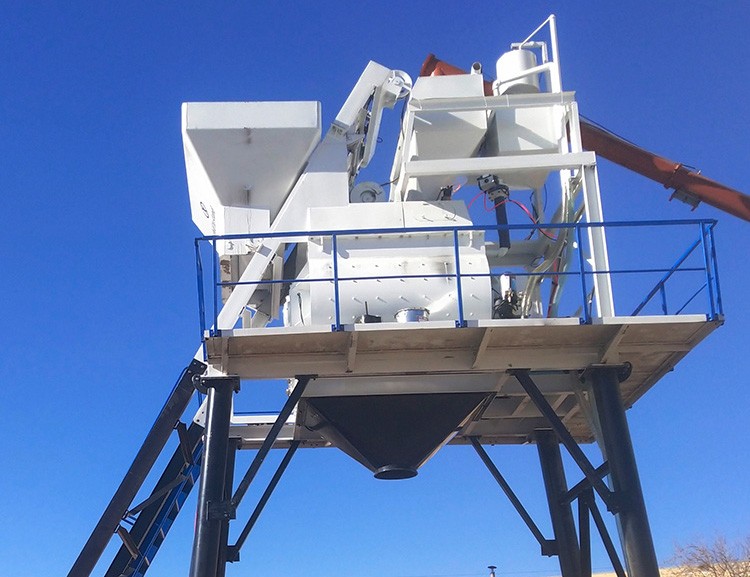

Installation site:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Company overview:

UNIQUE Group-Stone Crusher|stone crusher plant|Concrete Mixing Plant|Concrete mixer pump|Jaw crusher|Impact crusher|Cone crusher|water drilling machine

Features of Concrete Plant:
1) This concrete mixing plant adopts JS500 concrete mixer, it is a double horizontal shaft concrete mixer, so it can mix concrete efficiency and enough in short time.
2) The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.
3) Sand & gravel batching machine use PLD800, with has highly accuracy measuring.
4) There also has maintenance walkway, so that enginer can examine this plant easily.
5) Cement is stored in cement silo, and feeding by screw conveyor.
6) Water supply system is composed by water tank, water pump and water weigher.
The whole mixing, batching system is operated by electrical control room or control plate, fully automatical.
