DHB40 Asphalt Drum Mix Plant

*Capacity: 40t/h   *Total Power: 80kw

Select Capacity:



E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

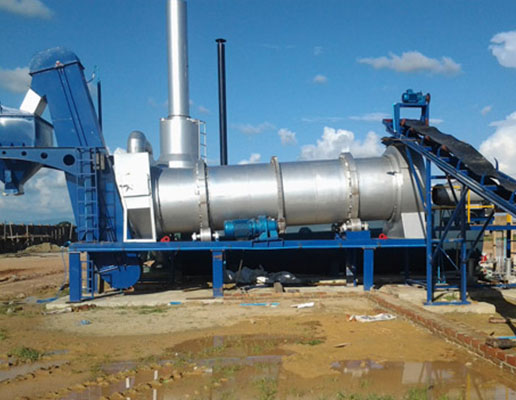

DHB40/MDHB40 asphalt drum mixing plant is a continuous mixing plant. The main charactristic of this plant is aggregate heating, mixing and bitumen adding and filler are done in one drum.
Features:
1. Ultra low fuel consumption.
2. Simple equipment consistent,easy to operate.
3. Easy to install, only need simple smooth and harden ground, do not need foundation.
4. Low equipment investment



Model

DHB40/MDHB40

Main Parameter

Rated Capacity (t/h)

40

Installation Power

80kW

Working Noise (dB)

≤70

Voltage

220V/380V-50Hz (adjustable)

Raw Material

Aggregate Size (mm)

≤25

Aggregate Gravity (kg/m3)

≥1600

Aggregate Moisture

≤5%

Cold Feeder

Cold Bin (m3)

3X6

Feeding Belt Adjustment Mode

Variable Frequency Drive

Weighing System

Method

Belt Weigher

Accuracy

±1%

Drying System

Mixing Type

Continuous

Drying & Mixing Drum (mm)

Φ1200X6000

Fuel

Diesel, Heavy Oil, Fuel Oil, Natural Gas, Coal

Burner

Coal

10~13kg/h

Oil

6~7kg/t

Gas

6~7kg/t

Hot Aggregate Temperature

≤160℃

Hot Asphalt Temperature

130~165℃ (±5℃)

Dust Collection System

Avail. Type

Cylone Collector/Volute Casing Collector/Baghouse Dust Collector/Water Scrubber

Air Emissions

≤100mg/Nm3

Bitumen Supply System

Bitumen Tank (m3)

1x30

Heating Method

Electrical Heating/Thermal Oil Heating

Weighing Method

Flow Weigher

Weighing Accuracy

±0.5%

Control System

Operation Mode

Full Auto/Manual

Covering Area

L x W (m)

30x16
