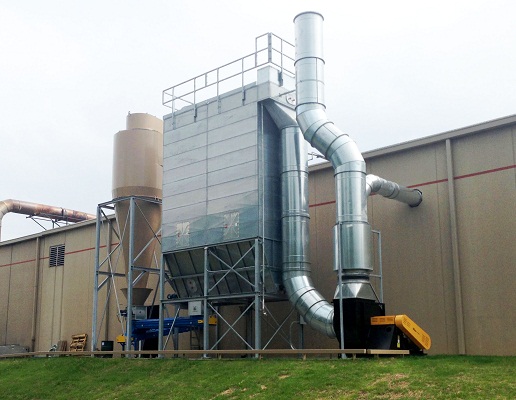

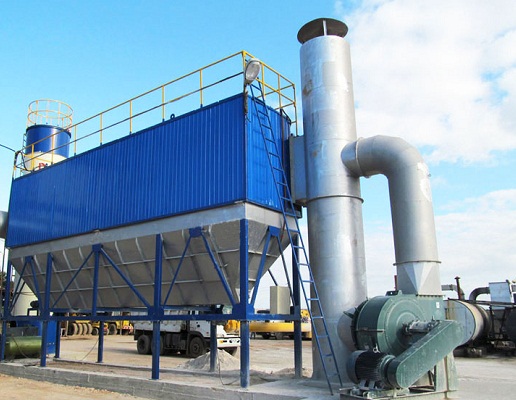

Bag house dustcollector is a main component of asphalt mixing plant.
Bag house dustcollector is a main component of asphalt mixing plant, it is made of high temperature resistant materials, resistant ability up to 220 ℃, all the bag mouth have a flexible clamp which matches with the special bag support skeletonto ensure the bag installed fast and reliable. The bag house’s head door is easy to open for easy inspection and replacement of the bag.When the dust removed by the dust bag dust collector fall down and gather in the box, and then will be carried out by the screw conveyor.
|
Model |
BD200B |
BD380B |
BD460B |
BD640B |
BD900B |
|
Bag house quantity |
206pcs |
384pcs |
448pcs |
624pcs |
896pcs |
|
Area of filter surface |
200m2 |
400m2 |
480m2 |
660m2 |
912m2 |
|
Air-to-cloth ratio |
90.7 Em³/㎡h |
90.7 Em³/㎡h |
90.7 Em³/㎡h |
90.7 Em³/㎡h |
90.7 Em³/㎡h |
|
Aggregates spiral power |
2.2 kW |
3 kW |
3 kW |
4 kW |
5.5kW |
|
Chimney height |
8.1 m |
8.1 m |
8.1 m |
8.1 m |
8.1 m |
|
Matched asphalt plant |
25-50t/h |
60-110t/h |
115-140t/h |
150-210t/h |
220-260t/h |
